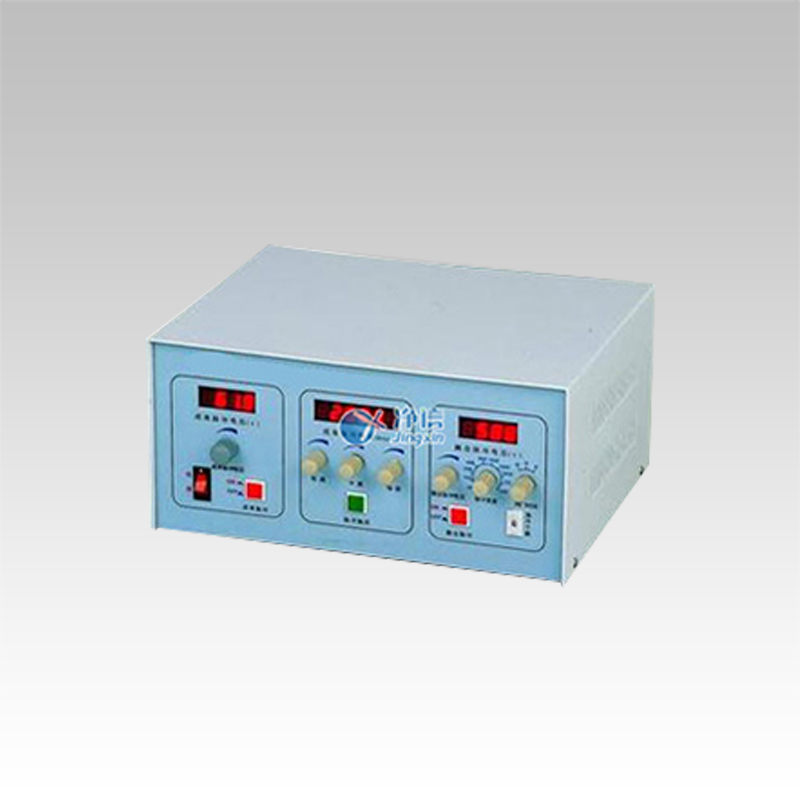

Product Description:
Operating environment:
technical parameter:
Main parameters | Parameter range |
AC electric field parameters: | *Square wave burst voltage: peak-to-peak value 0-48V (0-±24V), continuously adjustable. |
| *Square wave string pulse frequency: 35KHZ-3MHZSK adjustable |
DC electric field parameters: | 6000V/cm.* Square wave fusion pulse voltage: 0-600V continuously adjustable (electrode spacing) 1.0mm, the field strength can reach 6000V/cm. |
| *Square wave fusion pulse amplitude: 1us-5ms divided into ten levels, optional |
Microscope slide electrodes and rod electrodes are randomly equipped: | 20 groups each with a pole distance of 1mm, 1.5mm, and 2mm, and 20 groups of platinum wire patch electrodes. |
Display mode: | digital display, microcomputer control |
Pulse form: | exponential decay |
Net weight: | 9.22Kg |
Packing size: | 450*370*290mm |
basic configuration:
? Host: 1 set
? Fiber slide electrode, rod electrode
? 20 groups each with a pole distance of 1mm, 1.5mm, and 2mm
? 20 groups of platinum wire patch electrodes
