product description:

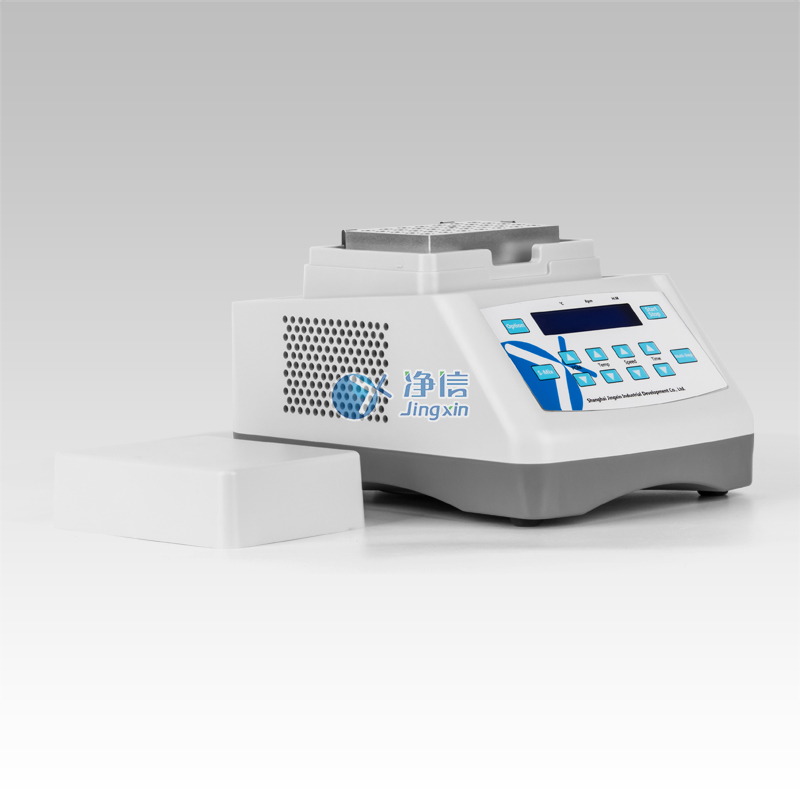

The JXH-100 constant temperature mixing instrument is a multi-purpose constant temperature oscillator that combines a brushless DC motor and PID intelligent temperature control technology. Its PID fuzzy control technology can accurately ensure the temperature control accuracy, and automatically adjust the heating rate to save waiting time.
JXH-100 perfectly combines the two functions of constant temperature and oscillation, which greatly shortens the time of experimental operation. It is an ideal automation tool for the reaction process of sample incubation, catalysis, mixing and storage. With multi-purpose functions such as heating, oscillation, and cooling, it can meet the needs of different users.
Features:
◆Users can independently turn off or turn on the constant temperature, oscillation, and timing functions to achieve multiple functions in one machine and improve equipment utilization;
◆Using metal modules, high temperature uniformity, easy module replacement;
◆The instrument has fast heating speed, uniform heating, precise temperature control and high stability;
◆Microprocessor control ensures superior temperature stability and uniformity;
◆Brushless DC motor, low noise, long life and maintenance-free;
◆LCD display, real-time display of current temperature and speed information;
◆With short oscillation jog function and temperature calibration function;
◆The oscillating speed is accurate and the fluctuation is small;
◆When the program runs, an alarm signal will be sent out;
◆ Optional power-off recovery function and automatic startup function to meet different needs of users;
◆Support module classification custom calibration function;
technical parameter:
Main parameters | Parameter range |
Temperature setting range | 0℃~100℃ |
time setting | 1min~99h59min/∞ |
Display accuracy | 0.1℃ |
range of rotation | 200~1800Rpm |
Heating time | ≤12 minutes (25°C to 100°C)* |
Multi-point loop operation | Support (can be cycled 99 times) |
Automatically run on startup | Support |
Sample capacity | See module selection table |
Voltage | AC220V/50-60HZ |
Dimensions | (mm)260x195x150 mm |
Temperature control range | Room temperature +5℃~100℃ |
Temperature control accuracy | ≤±0.3℃* |
Temperature uniformity | ≤±0.3℃* |
Horizontal amplitude | 3mm |
Multi-point operation | Support (5 points) |
Automatic preheating | Support |
Automatic recovery after power failure | Support |
input power | 150W |
Fuse | 250V 3A Ф5×20 |
weight | 7.5Kg |
Optional modules:
Model | Test tube diameter | Test tube number |
MD30 | 0.2ml (standard plate) | 96 |
MD31 | 0.5ml (centrifuge tube) | 54 |
MD32 | 1.5ml (centrifuge tube) | 35 |
MD33 | 2.0ml (centrifuge tube) | 35 |
MD34 | 0.5ml+1.5ml (centrifuge tube) | 15+20 |
MD35 | 0.2ml (enzyme plate) | 96 |
MD36 | 5ml | 24 |
MD37 | 10ml | 15 |
MD38 | 15ml | 12 |
MD39 | 50ml | 6 |
Custom module | Sample tube specifications provided by the customer | —— |

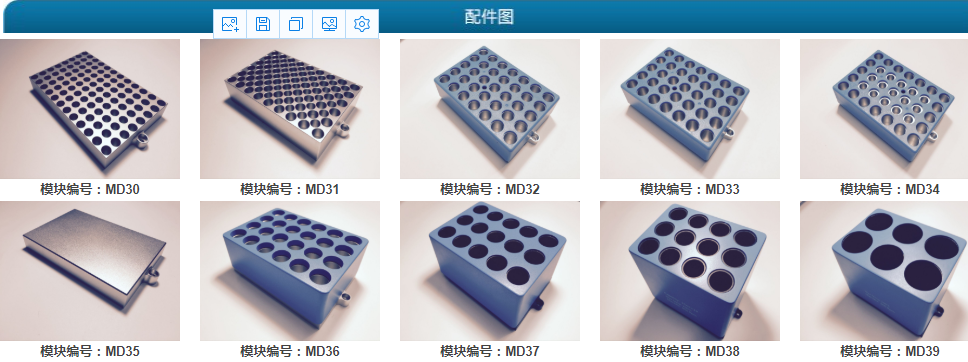

Accessories picture:
